Applications :

• The cables are designed for connection between traffi c control centers and equipment shelters along the trackside. The cables are specially designed to give good induction protection (R.F=0.21 at inductive voltage 100V/km) and are suitable for installation in high speed railway lines electrifi ed at 25KV ac.

Standards :

• SNCF CT 445
• NF F 55-698

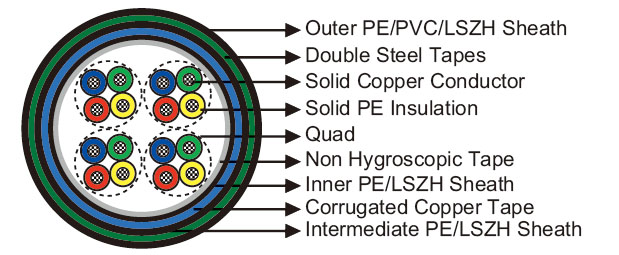

Construction :

• Conductors : Solid annealed copper, 1.0 mm sq nominal cross section area.
• Insulation : Solid polyethylene.
• Cabling Element : Four conductors are twisted to form a quad.
• Stranding : Quads are helically stranded to get the cable core.
• Core Wrapping : Plastic tape(s) with overlapping.
• Inner Sheath : Low density polyethylene. LSZH FR option can be offered upon request to NF C 32 070.2.2 (C1).
• Electrostatic Shield : Corrugated copper tape.
• Intermediate Sheath : Low density polyethylene. LSZH FR option can be offered upon request to NF C 32 070.2.2 (C1).
• Electromagnetic Shield : Two helically applied steel tapes (0.5mm).
• Outer Sheath : PE/PVC compound. LSZH FR option can be offered upon request to NF C 32 070.2.2 (C1).
• Remarks : ZCO3: PE/PVC Sheath; ZCO3-SH: LSZH Sheath.

Electrical Characteristics at 20 °C :

• Nominal Conductor Diameter	mm	1.13
  Nominal Cross Section Area	mm2	1.0
  Maximum Conductor Resistance (DC)	Ω/km	18.1
  Minimum Insulation Resistance @500 V DC (3mins)	MΩ.km	5000
  Maximum Mutual Capacitance @1000Hz (AC)	nF/km	40
  Maximum Capacitance Unbalance @800Hz	pF/500m	400
  Dielectric Strength, conductor to conductor (DC voltage 3mins)	V	4500
  Operating Voltage AC/DC	V	450/750

Reduction Factor :

• Inductive voltage(V/km)	50	70	100	370	400	470
  Reduction factor @50Hz	0.42	0.30	0.20	0.16	0.18	0.31

Mechanical and Thermal Properties :

• Minimum Bending Radius : 8xOD (static); 16xOD (dynamic).
• Temperature Range : -40°C to +70°C (during operation); -20°C +50°C (during installation).

Dimensions and Weight :



Cable Code	No. of Pairs	Nominal Sheath Thickness mm			Nominal Overall Diameter mm	Nominal Weight kg/km
		Inner	Interm.	Outer
1.13mm Conductor, 2.33 Insulated Wire
RS/ZCO3-2Y2Y(K)2YB2Y-2Q1S	2	0.8	1.0	1.6	27.0	1295
RS/ZCO3-2Y2Y(K)2YB2Y-4Q1S	4	0.8	1.0	1.6	29.5	1490





UV Resistant	Mineral Oil Resistant	Rated voltage	Anti Induction		Buried in Ciround	Laid In Ducts





PE Sheath

Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1

PVC Sheath

Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1





LSZH Sheath

Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266 Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 Low Toxicity         Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073 Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
